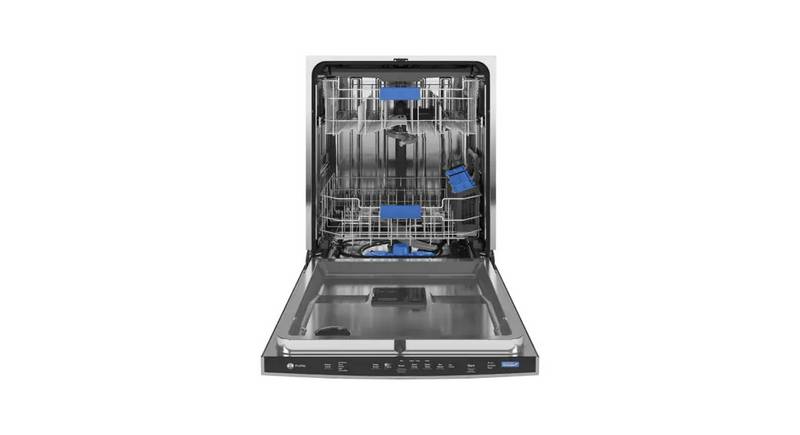

GE PDP755SYV Profile UltraFresh System Dishwasher

1

2

PDP755SYV/SBV

GE Profile^™ UltraFresh System Dishwasher with Microban^® Antimicrobial Technology

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

24"

Typical

23-3/4"

ELECTRICAL RATING

Voltage AC..........................................................120

Hertz.......................................................................60

Total connected load amperage..............7.8

Calrod^® heater watts max............................800/500

For use on adequately wired 120-volt, 7.8-amp

29-7/8"

circuit having 2-wire service with a separate

ground wire. This appliance must be grounded

for safe operation.

INSTALLATION INFORMATION: Before installing,

consult installation instructions packed with

product for current dimensional data.

33-3/8" MIN.

adj to

34-5/8" MAX.

27-1/2"

4" (toekick)

This Wall Area

must be Free

of Pipes or

Wires

24"

Min.

33-1/2" to 34-3/4"

Underside of

Countertop

4"

to Floor

Plumbing and Electric Service

Must Enter Inside This Area

Cabinets

Square

and

6"

Plumb

Figure A

24"

Min.

As an ENERGY STAR^®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

Listed by

Underwriters

Laboratories

For answers to your Monogram, Café^™, GE Profile^™ or GE Appliances

product questions, visit our website at geappliances.com or call

GE Answer Center^® Service, 800.626.2000.

Certified to NSF

Standard 184 for

sanitization

Specification Revised 8/23

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	GE PDP755SYV Profile UltraFresh System Dishwasher
Make	GE
Language	English
Filetype	PDF (Download)
File size	0.14 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• GE

GE PDP755SYV Profile UltraFresh System Dishwasher Overview

Summary of Contents

• Page 1: GE Profile UltraFresh System Dishwasher with Microban Antimicrobial Technology Dimensions and installation information Electrical rating: 120 volts, 60 hertz, total connected load amperage 7.8 Calrod heater watts max: 800/500 This appliance must be grounded for safe operation. Consult installation instructions packed with product for current dimensional data. As an ENERGY STAR partner, GE has determined that this product meets the ENERGY STAR guidelines. Certified to NSF Standard 184 for sanitization.
• Page 2: GE Profile UltraFresh System Dishwasher with Microban Antimicrobial Technology Deep Clean Washing 3rd Rack – This innovative third rack offers a flexible design that lets you clean a variety of items in a single load. UltraFresh System – Smart dishwasher algorithms introduce clean air and reduce moisture, refreshing the wash system to help prevent the growth of odor-causing bacteria. Twin Turbo Dry Boost – The Twin Turbo Dry Boost system uses a smart dual-wattage heater and 2 fans that work together to remove water from hard-to-dry items. Microban Antimicrobial Technology – Built into high usage points to prevent bacteria growth, it keeps surfaces 99% cleaner than unprotected surfaces. Smart Features Powered by SmartHQ – Built-In WiFi and the SmartHQ app make it easy to connect, control and monitor your smart dishwasher from anywhere. Deep Clean Silverware Jets – A system of deep clean silverware jets blasts the silverware basket from the bottom up, targeting stuck-on foods. 4 Bottle Wash Jets – This dishwasher ensures a targeted wash and deep clean for tall items, narrow glasses, jars and more. Sanitize – Enjoy peace of mind with a sanitization cycle that reduces up to 99.999% of bacteria on dishes. Active Flood Protect – This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. 42 dBA Dishwasher – Get reliable wash performance and a deep clean without unwanted noise thanks to this super-silent 42 dBA dishwasher.
