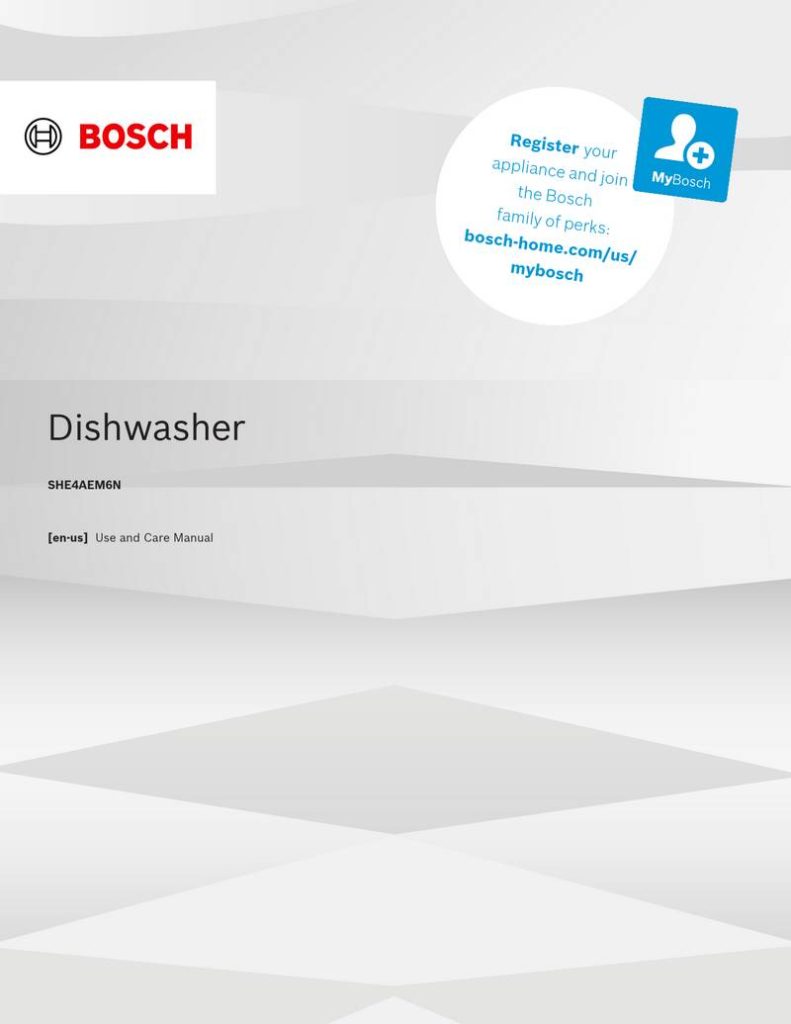

Dishwasher

SHE4AEM6N

[en-us] Use and Care Manual

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	BOSCH SHE4AEM6BK 100 Series Plus Recessed Handle Dishwasher
Make	Bosch
Language	English
Filetype	PDF (Download)
File size	2.5 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• Bosch

BOSCH SHE4AEM6BK 100 Series Plus Recessed Handle Dishwasher Overview

Summary of Contents

• Page 1: Dishwasher SHE4AEM6N Use and care manual
• Page 2: IMPORTANT SAFETY INSTRUCTIONS Safety definitions General information Intended use Restrictive use Grounding instructions Safe use Risk to children State of California Proposition 65 Warning Basic operation Preventing material damage Environmental protection and energy-saving Familiarizing yourself with your appliance Dishwasher cycles Features Cleaning and maintenance Troubleshooting Transportation, storage and disposal Customer service Technical specifications
• Page 3: Statement of limited product warranty. What this warranty covers and who it applies to. How long the warranty lasts. Extended warranty. Repair/replace as your exclusive remedy. Out of warranty product. Warranty exclusions. Obtaining warranty service. Product information.
• Page 4: IMPORTANT SAFETY INSTRUCTIONS Always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. To avoid risk of electric shock, only use the appliance in enclosed residential space according to the installation manual. Do not allow children to play in or on the dishwasher. When loading items to be washed, locate sharp items so they are not likely to damage the door seal. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm.
• Page 5: Preventing material damage Harsh chemicals such as bleach-based products can damage your dishwasher. Do not use harsh chemicals such as bleach-based products to clean your dishwasher. Do not use a steam cleaner. So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. Do not use stainless steel polish on an anti-fingerprint finish or a black stainless finish. When the program ends, let the appliance cool down a bit before opening the door. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty. Saving energy If you follow these instructions, your appliance will use less power and water.
• Page 6: Familiarizing yourself with your appliance Appliance Detergent dispenser: Add detergent to the detergent dispenser. Lower rack: The lower spray arm washes the dishware in the lower rack. If the dishware has not been washed properly, clean the spray arms.
• Page 7: Familiarizing yourself with your appliance Detergent tab collecting tray: During the wash cycle, detergent tabs automatically drop out of the detergent dispenser into the tab collecting tray, where they can dissolve fully. Upper spray arm: The upper spray arm washes the dishware in the upper rack. If the dishware has not been washed properly, clean the spray arms. Dispenser for rinse aid: Rinse aid is added to the dispenser for rinse aid. You will need the rating plate data to contact customer service. You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. If you press the button for approx. 3 seconds, you can open the basic settings. ON/OFF button and reset button: Switching on the appliance, switching off the appliance, and terminating the wash cycle. Cycle buttons: Cycles and options are available for selection.
• Page 8: Familiarizing yourself with your appliance The displays show the remaining time of the wash cycle. Starting the wash cycle Rinse aid refill indicator Rinse aid system The indicator lights up at the end of the program Sanitize. Once the wash cycle has ended, the display lights up.
• Page 9: Dishwasher cycles overview includes different cycles available on the dishwasher. The running time varies depending on the selected cycle, water temperature, quantity of dishware, and level of dirt. Consumption values relate to normal conditions and water hardness of 16 - 20 °E. Heavy cycle is for washing pots, pans, and non-fragile dishware with stubborn food remnants. Auto cycle is sensor-controlled and optimized based on the soiling of the rinse water. Normal cycle is for cleaning mixed dishware and silverware with lightly dried-on food remnants. Speed 60® cycle is time-optimized for cleaning mixed dishware and silverware. Energy Guide label is based on the Normal soil sensing cycle without rinse aid. Favorite function allows saving a combination of a cycle and an option via the Home Connect app. The unit was tested without any rinse aid and with a single dose of detergent in the dispenser.
• Page 10: You can use the Home Connect app to download additional cycles and options and save them. Arrange cups, glasses, and small tableware items in the top rack. Here is an overview of the different options available on your dishwasher. For a better drying result, the final rinse temperature is increased and the drying phase extended. To ensure a higher hygiene status for the appliance and dishware, the temperature is increased and maintained for an extra-long period. You can adjust the height of the upper rack to make room for larger items. To wash large items in the racks, adjust the shelf height of the upper rack. Only sanitizing cycles have been designed to meet the requirements for soil removal and sanitation efficacy. You can find an overview of the possible features of your appliance and how to use them here. These features depend on your appliance model.
• Page 11: Features Raise or lower the rack evenly to the right level. Arrange the silverware in the silverware basket, ensuring that the items are not nestled together and with the sharp points down. The sharp points and edges of knives and other sharp utensils can cause serious injury. Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils. Check that the rack is level on both sides. Arrange pans and plates in the lower rack. Use the cup shelf and the space underneath for small cups and glasses or for large items of silverware. If you do not need the cup shelf, you can fold it down.
• Page 12: Before using for the first time, set the racks at the right height. The appliance height is 34 with the silverware basket. For initial use, configure the settings after the first use or a factory reset. Connect your appliance to a mobile device for convenient settings changes using the Home Connect® app. Add rinse aid before switching on the appliance. Start the program with the highest cleaning temperature without dishware to remove any marks. For optimum drying results, use rinse aid intended for household dishwashers. If rinse aid spills out, remove it from the tub to prevent excessive frothing. If there are streaks or water spots on dishware, adjust the amount of rinse aid. Close the lid of the dispenser for rinse aid after filling.
• Page 13: Detergent To open the appliance settings, press the button for 3 seconds. Find out which detergents are suitable for your appliance. Only use detergents that are made for dishwashers, either basic or combination detergents. For the best washing and drying results, use a separate detergent, then add rinse aid separately. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. The refill indicator for rinse aid flashes. Tabs are perfect for all cleaning functions and do not need to be measured out. Powder detergent is recommended for shorter cycles. Liquid detergent works faster and is recommended for shorter cycles without a pre-rinse. Do not use a detergent which is not designated for dishwasher use or contains chlorine.
• Page 14: Dishware Close the lid of the detergent dispenser. Information on detergent Follow the instructions on detergents in everyday use. Detergents marked as ecological generally contain lower levels of active agents or none at all. Adjust the rinse aid and the water softening system settings in accordance with the detergent or combination detergent in use. Any rinse aid component of a combination detergent has limited effectiveness. To prevent sticking, only touch detergents in a water-soluble pouch with dry hands. The detergent dispenser will open automatically at the optimum time during the cycle. Only wash dishware that is suitable for dishwashers. Only put glasses and china in the dishwasher if they are labeled dishwasher-safe.
• Page 15: For better washing and drying results, position items with curves or recesses at an angle so water can run off. Use a detergent labeled as gentle to dishes. Highly caustic alkaline or highly acidic cleaning solutions are not safe to use in the dishwasher. Remove large remnants of food from dishware before loading. Do not pre-rinse dishware under running water to save resources. Arrange heavily soiled dishware in the lower rack for better cleaning results. Arrange silverware with the points and sharp edges facing down to avoid injury. Position containers with openings facing down to prevent water collection. Do not block the spray arms to ensure they can turn freely. Avoid loading the dishwasher with paper products or anything other than dishwasher safe dishware.
• Page 16: Dishware Silverware basket Removing dishware Dishes can be very hot immediately after the cycle ends. Open the door slightly and allow dishes to cool for a few minutes before unloading. To prevent water dripping onto dishware, unload it starting at the bottom and working up. Check the washing tank and accessories for soiling and clean if necessary. Recommended loading patterns. Additional loading patterns for 10 place settings.
• Page 17: Basic operation includes setting options to complete the chosen wash program. The available options depend on the selected program. You can delay the start of the wash cycle via the Home Connect® app. The wash cycle has ended when no displays on the controls are lit. Your dishwasher has a built-in feature to help prevent unintentional operation, especially by children. To save energy, the appliance switches off automatically 10 minutes after the end of the wash cycle. The button lock prevents the appliance from being operated accidentally or incorrectly while running. The cycle last selected and the option last selected will be set by default when switching on the appliance. To adjust the wash cycle to the soiling level of the dishware, select a suitable program. You can only change a cycle in progress if you can cancel it first. The button lock remains activated during a power failure.
• Page 18: Basic operation Terminating the wash cycle To end a cycle early or to switch from one that has already started, you will need to cancel it first. Press for approx. 4 seconds. All displays light up. As soon as the displays are off, the residual water is pumped out. The cycle is cancelled and ends after approx. 1 minute. Switching off the appliance To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided. Please note the information on preventing material damage. Press On/Off.
• Page 19: Basic settings You can configure the basic settings for your appliance to meet your needs. The basic settings depend on the features of your appliance. Set or switch off the amount of rinse aid to be dispensed. Switch intensive drying on or off for each operation. The temperature in the final rinse is increased for a better drying result. Adjusting the signal volume. Switch the wireless network connection on or off. The basic setting is not available until you have connected the appliance with the Home Connect® app. Restore changed settings to the factory settings. Connect your appliance to a mobile device to conveniently change all settings using the Home Connect® app.
• Page 20: To open the appliance settings, press the button for 3 seconds. The refill indicator for rinse aid flashes. Press the button repeatedly until the Rinse Aid and Sanitize LEDs flash. The factory setting is level 2. To store the setting, press the button for 3 seconds. If the LED is not lit up, Wi-Fi is switched off. This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect® app. The Home Connect® services are not available in every country. The availability of the Home Connect® function depends on the availability of Home Connect® services in your country.
• Page 21: Home Connect® To be able to use Home Connect®, you must first set up the connection to the WLAN home network and to the Home Connect® app. Open the Home Connect® app and scan the QR code. The Home Connect® app guides you through the entire registration process. Follow the instructions in the Home Connect® app to implement the settings. Consult the Home Connect® documents supplied. Note the safety information in this instruction manual and ensure that it is observed when operating the appliance using the Home Connect® app. Connect your appliance to a mobile device quickly and easily. You can use the Home Connect® app to start the appliance with your mobile device. The appliance is connected to your WLAN home network. The Home Connect® app is installed on your mobile device.
• Page 22: Cleaning and maintenance Start the program without dishware. Remote Diagnostics allows Customer Service to access your appliance if connected to the Home Connect® server. Only use suitable cleaning agents to clean your appliance. Follow the tips on appliance care to ensure proper functioning. Regularly wipe the door seals, front of the dishwasher, and control panel with a damp cloth. You can update the software of your appliance for optimization and troubleshooting. Leave the door slightly ajar if the appliance is not going to be used for a while to prevent unpleasant odors. The filter system removes coarse soiling from the dishwashing cycle. Check the filters for residues after each dishwashing cycle. Using detergents containing chlorine may harm health; never use them.
• Page 23: Cleaning and maintenance Turn the coarse filter counterclockwise and take out. Ensure that the locking catches on the coarse filter click into position. Insert the filter system into the appliance and turn the coarse filter clockwise. Ensure that foreign objects do not fall into the sump. Ensure that the arrow markings match up. Clean the spray arms regularly. Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Unscrew the upper spray arm and pull down to remove. Clean the filter elements under running water. Carefully remove the rim of debris between the coarse filter and the fine filter.
• Page 24: Cleaning and maintenance Pull up the lower spray arm to remove. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign objects. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arm and screw firmly in place.
• Page 25: Troubleshooting You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs. Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) all light up at the same time. Not an appliance error. Garbage disposal is still plugged or the drain hose is kinked. Check that the garbage disposal plug is removed and that the drain hose is not kinked. Not an appliance error. The drain pump cover is loose or a foreign object is blocking the pump. Secure the cover of the drain pump so it clicks into place or clean the drain pump. Filters in the water connection of the supply or AquaStop hose are blocked. Switch off the appliance and pull out the power cord plug. Turn off the water faucet and unscrew the water connection. Check the water connection for leaks and restore the power supply.
• Page 26: Troubleshooting Four vertical LEDs are all flashing. There is a technical issue. If the problem occurs again, contact customer service and give the error code. Dishware is not dry due to no rinse aid used or dosage set too low. Set the amount of rinse aid to be dispensed. Select a wash cycle with drying. Position dishware at an angle where possible. Use rinse aid to improve drying performance. Activate Extra Dry/intensive drying. Wait until the program ends before removing dishware. Silverware not arranged properly can lead to droplets forming.
• Page 27: Troubleshooting Food remnants on dishware may be caused by dishware being placed too close together or the rack being overfilled. Arrange dishware with sufficient space in between to ensure spray jets reach the surfaces. Avoid points of contact to prevent blocking spray arm rotation. Spray arm nozzles may be blocked; clean the spray arms. Dirty filters can affect performance; clean the filters. Filters must be inserted correctly and engaged properly. Select a more intensive wash program if the selected cycle is too light. Only remove large remnants of food and do not pre-rinse dishware to ensure proper cleaning. Tall narrow containers should not be positioned at too great an angle or in corner areas. Ensure the upper rack is set to the same height on both sides for optimal performance.
• Page 28: Troubleshooting Issue Cause and troubleshooting Wipeable or water-soluble coatings may have detergent residue that cannot generally be removed with chemicals. Change your detergent and scrub the appliance by hand. Stubborn white coatings on dishware may also be due to detergent residue. Increase the amount of detergent used or change detergent if too little is being used. Select a more intensive wash program if the selected wash cycle is too light. Tea residue or lipstick marks on dishware may result from dishwashing temperature being too low. Use a suitable detergent and follow the manufacturer's instructions for the amount to be used. Only remove large remnants of food and do not pre-rinse dishware to avoid choosing a lighter cycle. Colored coatings inside the appliance may be due to substances in vegetables or tap water. Plastic parts inside the appliance may become discolored over time but this will not impair functioning.
• Page 29: Troubleshooting There are removable streaks on glasses, glassware with a metallic appearance, and silverware. Items of dishware are blocking the dispenser lid. Dishware has been precleaned too intensively, leading to stubborn remnants. Only remove large remnants of food and do not pre-rinse dishware. Irreversible clouding of glassware can occur if glasses are not dishwasher-proof. Use dishwasher-proof glasses and avoid a lengthy steam phase. Check that the spray arms are not blocked and can rotate freely. Hand soap in the rinse aid dispenser can cause excessive foam. Connection to home network may fail if WLAN on router is not active. Consult the documents supplied for Home Connect if there is a technical error.
• Page 30: Troubleshooting All LEDs light up or flash. Electronics have detected a fault. Press the main switch button for approx. 4 seconds to reset and restart the appliance. If the problem occurs again, switch off the appliance and unplug it for at least 2 minutes. Water is left in the appliance at the end of the program. The filter system or area under the filters is blocked. Clean the filters and drain pump. Appliance cannot be switched on or operated. A software update may be taking place. Wait until the software update has finished. Appliance does not start. The breaker may have tripped. Check the relevant breaker and ensure the power cord is properly inserted. Appliance door is not closed properly. Close the appliance door to ensure it is secure. Appliance stops during the cycle. Check if the appliance door is closed properly and verify the power and water supply. Upper rack is pressing against the inner door. Arrange the dishware to prevent the appliance door from closing properly. Appliance door cannot be closed. The door lock may have been activated. Close the appliance door with greater force.
• Page 31: Troubleshooting Appliance door cannot be closed. Check whether the appliance has been installed properly. Lid on the detergent dispenser cannot be closed. Remove detergent residue. Filling valves making knocking noises. Can only be remedied in the home installation. Noise level varies. Make sure the dishware is loaded in the most secure way. Spray arm is striking dishes. Arrange dishware so the spray arms do not strike dishware. Light items of dishware move about during the wash cycle. Position light items of dishware securely. Clean drain pump. Large food remnants or foreign objects can block the drain pump. Use caution when removing parts for cleaning. Disconnect the appliance from the power supply.
• Page 32: Transportation, storage and disposal To avoid damage to the appliance, empty it before transporting. Always transport the dishwasher upright to prevent residual water getting into the machine's controls. Disconnect the appliance from the power supply before removing it. Environmentally sound disposal allows valuable raw materials to be recycled. Avoid a risk of entrapment upon disposal by unplugging the appliance and cutting the power cord. Preparing your unit for vacation includes turning off the main valve and water supply. If your dishwasher will be unused for an extended period in freezing temperatures, have it winterized by an authorized service provider. With any warranty repair, the appliance will be repaired by an authorized service provider using genuine replacement parts. Detailed information on the warranty period and terms can be found in the Statement of Limited Product Warranty. For assistance with connecting to Home Connect, view instructions on the website.
• Page 33: Customer service Model number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) You can find the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. The rating plate is located inside the appliance door. Making a note of your appliance's details and the customer service telephone number will enable you to find them again quickly.
• Page 34: Statement of limited product warranty 5 year limited warranty on dish racks: BSH will replace the upper or lower dish rack if the rack proves defective in materials or workmanship. Lifetime warranty against stainless steel rust through: BSH will repair or replace your dishwasher if the inner liner should rust through. BSH will repair or replace the stainless steel door if the door should rust through. Bosch is under no obligation to provide concessions once this warranty has expired. During this warranty period, Bosch will repair your product without charge if it proves to have been manufactured with a defect. Bosch will replace your product if reasonable attempts to repair it have been made without success. Bosch highly recommends that you do not attempt to repair the product yourself or use a non-authorized service provider. The warranty coverage excludes all defects or damage that are not the direct fault of Bosch. Use of the product in anything other than its normal, customary and intended manner will void the warranty. Bosch will not have any liability for damage to surrounding property, including cabinetry and floors.
• Page 35: Register your appliance to enjoy customized benefits. Simply create a MyBosch account, then register your appliance. You'll find a variety of customized information in MyBosch such as discounts for filters, cleaners, accessories & parts. Easy access to manuals & appliance specifications. Easy access to parts lists. Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration). No matter what, no matter when: Bosch is here to support you. We’re here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs. Find online resources such as FAQs, how-to videos, manuals, warranties, and authorized Bosch services. Please have your Model Number (E-Nr) ready when contacting us.
