Model EST-Front Loader

Quick Setup

Instructions

MODEL EST FRONT LOADER

REAR VIEW

HARD WIRE

POWER SUPPLY

TUBE

3

3

STIFFENER

WARNING: Electrical and

plumbing connections

need to be made by a

licensed service person

and comply with all

Federal, State and Local

Health, Electrical,

CHEMICAL

TUBING

Plumbing and Safety

codes.

1/2" WATER

1

INLET

2" DRAIN

OUTLET

2

STEP

STEP

STEP

RED

WHITE

3

BLUE

2

1

8"

WALL

DRAIN

FLOOR DRAIN

Insert tube stiffener with chemical tubing

into each corresponding chemical

dispenser.

Connect a 2" drain pipe (not supplied)

from scrap accumulator to floor or wall

drain.

Connect dishmachine to hot water source

recommended 140 temperature (120

minimum temperature required).

PN: 10130.19

07-2021

VIEW FULL SCREEN PDF MANUAL

General	Details

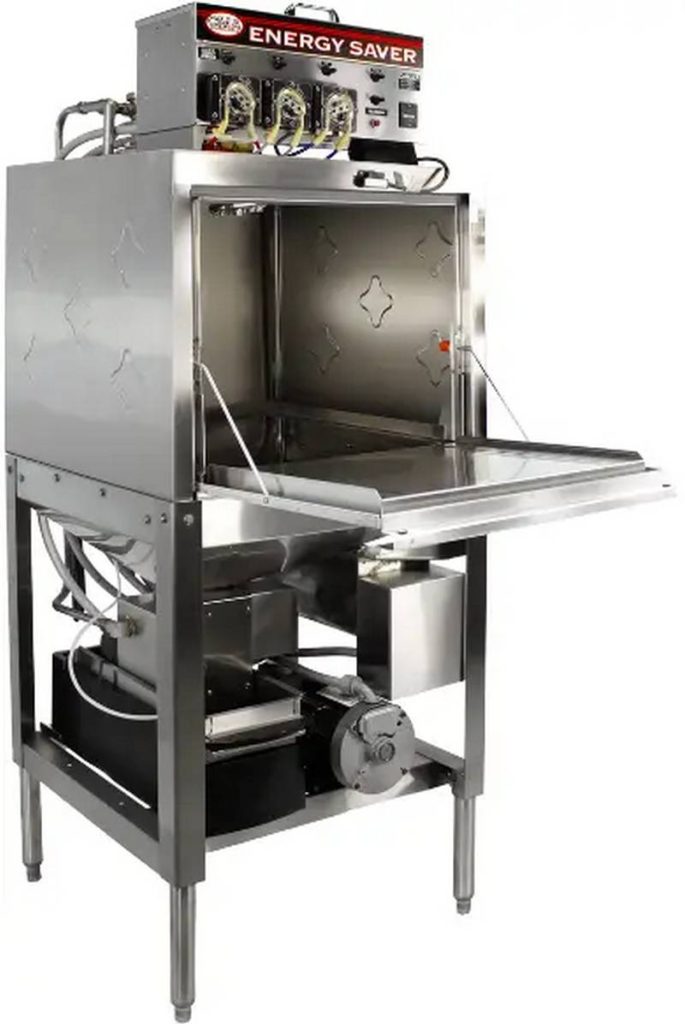

Name	CMA EST-FL1 EST Front Loader Water Dishwasher
Make	CMA
Language	English
Filetype	PDF (Download)
File size	0.23 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• CMA

CMA EST-FL1 EST Front Loader Water Dishwasher Overview

Summary of Contents

• Page 1: Model ES front loader quick setup instructions. Electrical and plumbing connections need to be made by a licensed service person and comply with all federal, state, and local health, electrical, plumbing, and safety codes. Insert tube stiffener with chemical tubing into each corresponding chemical dispenser. Connect a 2 drain pipe from scrap accumulator to floor or wall drain. Connect dishmachine to hot water source recommended at 140 degrees temperature (120 minimum temperature required).
