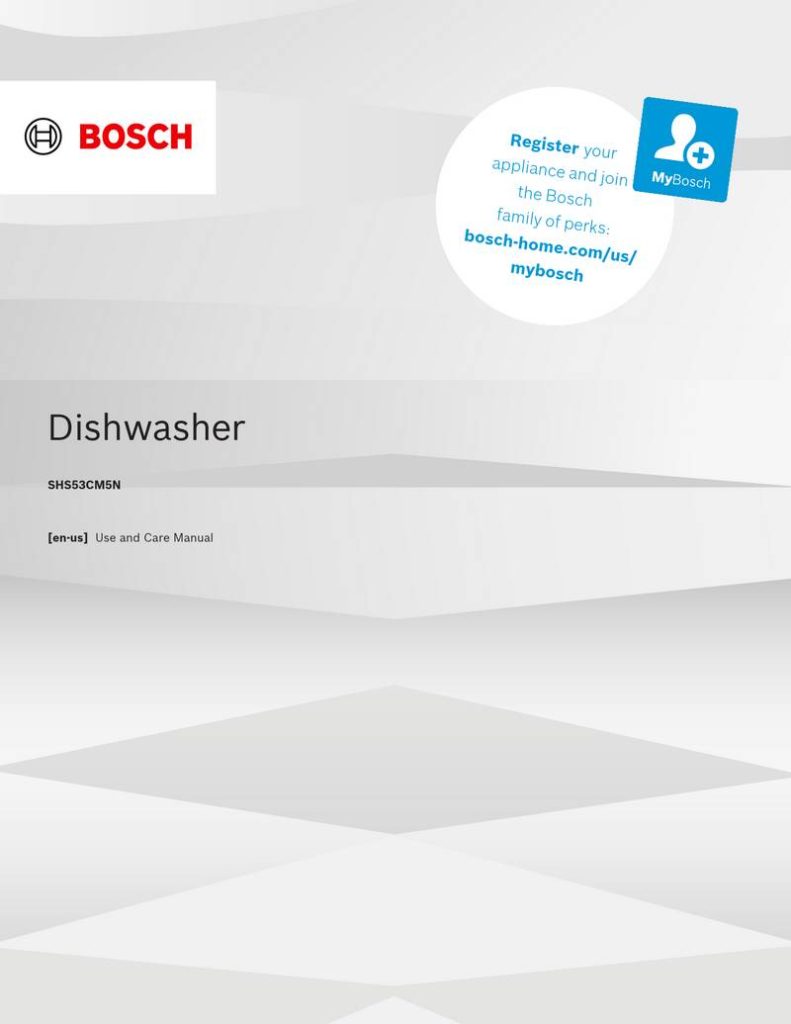

Dishwasher

SHS53CM5N

[en-us] Use and Care Manual

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	BOSCH SHS53CM5N Dishwasher
Make	Bosch
Language	English
Filetype	PDF (Download)
File size	2.65 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• Bosch

BOSCH SHS53CM5N Dishwasher Overview

Summary of Contents

• Page 1: Dishwasher Use and care manual
• Page 2: IMPORTANT SAFETY INSTRUCTIONS Safety definitions General information Intended use Restrictive use Grounding instructions Safe use Risk to children State of California Proposition 65 Warning Basic Operation Protection against unintentional operation
• Page 3: Statement of limited product warranty covers specific conditions and eligibility. The warranty duration is defined clearly. Extended warranty options are available. Repair or replacement is the exclusive remedy under the warranty. Out of warranty products have different considerations. Certain exclusions apply to the warranty coverage. Instructions for obtaining warranty service are provided. Product information relevant to the warranty is included.
• Page 4: IMPORTANT SAFETY INSTRUCTIONS Always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. To avoid risk of electric shock, only use the appliance in enclosed residential space according to the installation manual. Do not allow children to play in or on the dishwasher. When loading items to be washed, locate sharp items so they are not likely to damage the door seal. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm.
• Page 5: Preventing material damage Harsh chemicals such as bleach-based products can damage your dishwasher. Do not use harsh chemicals such as bleach-based products to clean your dishwasher. Certain cleaning products may damage the appliance. Do not use a steam cleaner. So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. Do not use stainless steel polish on an anti-fingerprint finish or a black stainless finish. When the program ends, let the appliance cool down a bit before opening the door. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty. Saving energy If you follow these instructions, your appliance will use less power and water.
• Page 6: Familiarizing yourself with your appliance Appliance Detergent dispenser: Add detergent to the detergent dispenser. Lower rack Lower spray arm: The lower spray arm washes the dishware in the lower rack. If the dishware has not been washed properly, clean the spray arms.
• Page 7: Familiarizing yourself with your appliance Detergent tab collecting tray: During the wash cycle, detergent tabs automatically drop out of the detergent dispenser into the tab collecting tray, where they can dissolve fully. Upper spray arm: The upper spray arm washes the dishware in the upper rack. If the dishware has not been washed properly, clean the spray arms. Dispenser for rinse aid: Rinse aid is added to the dispenser for rinse aid. You will need the rating plate data to contact customer service. You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. If you press the button for approx. 3 seconds, you can open the basic settings. Switching on the appliance and switching off the appliance is done via the ON/OFF button. Terminating the wash cycle is detailed on page 19. Remote Start is mentioned on page 23.
• Page 8: Familiarizing yourself with your appliance The displays show the remaining time of the wash cycle. Starting the wash cycle Rinse aid refill indicator The indicator lights up at the end of the program Sanitize. Once the wash cycle has ended, the display lights up.
• Page 9: Dishwasher cycles overview provides information on different cycles available. Running time varies depending on the selected cycle, water temperature, quantity of dishware, and level of dirt. Consumption values relate to normal conditions and water hardness of 16 - 20 °E. Heavy cycle is for washing pots, pans, and non-fragile dishware, effective for stubborn food remnants. Auto cycle optimizes cleaning based on the soiling of rinse water, suitable for mixed dishware. Normal cycle is economical and designed for lightly dried-on food remnants. Speed 60 cycle is time-optimized for common household food remnants. Energy Guide label is based on the Normal soil sensing cycle. Testing was conducted without rinse aid and with a single dose of detergent. Dish loads for energy certification should have the rack position set appropriately.
• Page 10: Recommended for daily use to completely wash a full load of normally soiled dishes. To ensure a higher hygiene status for the appliance and dishware, the temperature is increased and maintained for an extra-long period. Especially suitable for cleaning chopping boards or baby bottles. Continuous use of this option improves the hygiene status. Only sanitizing cycles have been designed to meet the requirements for soil removal and sanitation efficacy. You can find an overview of the possible features of your appliance and how to use them here. Arrange cups, glasses, and small tableware items in the top rack. With the favorite function, you can save a combination of a cycle and an option. For a better drying result, the final rinse temperature is increased and the drying phase extended. You can adjust the height of the upper rack to make room for larger items.
• Page 11: Features Pull out the upper rack. To prevent the rack from suddenly dropping down, hold the side of the rack by the top edge. Press in the right and left hand levers on the outside of the rack. Arrange pans and plates in the lower rack. Arrange the silverware in the silverware basket, ensuring that the items are not nestled together and with the sharp points down. The sharp points and edges of knives and other sharp utensils can cause serious injury. Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils. Check that the rack is level on both sides. Release the levers.
• Page 12: Features Silverware drawer: Use the flip tines to position dishware securely, e.g. plates. Arrange silverware with the points and sharp edges down. You can fold the tines down to arrange pans, bowls, and glasses better. Cup shelf: Use the cup shelf and the space underneath for small cups and glasses or for large items of silverware, e.g. cooking spoons or serving cutlery. If you do not need the tines, fold them down. Rack heights: Set the racks at the right height. Appliance height is 34 with silverware basket.
• Page 13: Before using for the first time Initial use Before the first use, or after a factory reset, you will need to configure the settings. Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect® app. Requirement: The appliance has been installed and connected. Add rinse aid. Switch on the appliance. Start the Program with the highest cleaning temperature without dishware. To remove any marks from water or other residues, we recommend you operate the appliance without dishware before using it for the first time. Spilled rinse aid can cause excessive frothing during the wash cycle. For optimum drying results, use rinse aid.
• Page 14: Detergent To open the appliance settings, press the button for 3 seconds. Find out which detergents are suitable for your appliance. Only use detergents that are made for dishwashers, either basic or combination detergents. For the best washing and drying results, use a separate detergent, then add rinse aid separately. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Tabs are perfect for all cleaning functions and do not need to be measured out. Powder detergent is recommended for shorter cycles. Liquid detergent works faster and is recommended for shorter cycles without a pre-rinse. Do not use a detergent which is not designated for dishwasher use or contains chlorine. Liquid hand soap can cause increased frothing and damage the appliance.
• Page 15: Dishware Close the lid of the detergent dispenser. Information on detergent Follow the instructions on detergents in everyday use. Detergents marked as ecological generally contain lower levels of active agents or none at all. Adjust the rinse aid and the water softening system settings in accordance with the detergent in use. Any rinse aid component of a combination detergent has limited effectiveness. To prevent sticking, only touch detergents in a water-soluble pouch with dry hands. The detergent dispenser will open automatically at the optimum time during the cycle. Use tablets with enhanced drying results. Only wash dishware that is suitable for dishwashers.
• Page 16: For better washing and drying results, position items with curves or recesses at an angle so water can run off. Use a detergent labeled as gentle to dishes. Remove large remnants of food from dishware. Do not pre-rinse dishware under running water. Put heavily soiled dishware in the lower rack for better results. Arrange dishware so it is stable and cannot tip over. Arrange silverware with the points and sharp edges facing down to avoid injury. Position containers with openings facing down to prevent water collection. Do not block the spray arms to ensure they can turn freely. Avoid loading the dishwasher with paper products or anything other than normal, dishwasher safe dishware and kitchenware.
• Page 17: Dishware Removing dishware Dishes can be very hot immediately after the cycle ends. Open the door slightly and allow dishes to cool for a few minutes before unloading. To prevent water dripping onto dishware, unload it starting at the bottom and working up. Check the washing tank and accessories for soiling and clean if necessary. Recommended loading patterns. 12 place settings: Lower rack. Additional loading patterns for 10 place settings: Lower rack, Upper rack.
• Page 18: Basic operation includes setting options to complete the chosen wash program. The available options depend on the selected program. You can delay the start of the wash cycle via the Home Connect® app. While the wash cycle is running, a spot of light is projected onto the floor below the appliance door. Your dishwasher has a built-in feature to help prevent unintentional operation, especially by children. To save energy, the appliance switches off automatically 10 minutes after the end of the wash cycle. The buttons on the appliance are touch sensitive and only require a quick, gentle touch. To adjust the wash cycle to the soiling level of the dishware, select a suitable program. To end a cycle early or switch from one that has already started, you will need to cancel it first. If you do not perform any actions on the appliance for 10 minutes, it will automatically switch off. The wash cycle has ended when no displays on the controls are lit.
• Page 19: Basic operation The cycle is cancelled and ends after approx. 1 minute. Switching off the appliance To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided. Please note the information on preventing material damage. Press On/Off.
• Page 20: Basic settings allow you to configure your appliance to meet your needs. The basic settings depend on the features of your appliance. You can set or switch off the amount of rinse aid to be dispensed. Intensive drying can be switched on or off for each operation, which may slightly increase the run time. Adjust the signal volume with a scale of 4 levels. You can switch the wireless network connection on or off. The basic setting is not available until the appliance is connected with the Home Connect® app. You can restore changed settings to the factory settings. Connecting your appliance to a mobile device allows convenient changes to all settings using the Home Connect® app. To open the appliance settings, press the button for 3 seconds.
• Page 21: Home Connect® To open the appliance settings, press the button for 3 seconds. The refill indicator for rinse aid flashes. Press the button repeatedly until the Rinse Aid and Sanitize LEDs flash. The factory setting is level 2. To store the setting, press the button for 3 seconds. If the LED is not lit up, Wi-Fi is switched off. This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect® app. The Home Connect® services are not available in every country. The availability of the Home Connect® function depends on the availability of Home Connect® services in your country.
• Page 22: Home Connect® To be able to use Home Connect®, you must first set up the connection to the WLAN home network and to the Home Connect® app. You can use the Home Connect® app to start the appliance with your mobile device. The Home Connect® app guides you through the entire registration process. The appliance is connected to your WLAN home network. The appliance is connected to the Home Connect® app. The Customer Service can access your appliance via Remote Diagnostics if you ask them to do so. You can use this function to update the software of your appliance. Please see the information on data protection. You can find the Home Connect® settings in the basic settings for your appliance. The Home Connect® app informs you about available software updates.
• Page 23: Cleaning and maintenance The filter system removes coarse soiling from the dishwashing cycle. This initial registration prepares the Home Connect® functions for use and is only required when you want to use the Home Connect® functions for the first time. To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Never use detergents containing chlorine. Check the filters for residues after each dishwashing cycle. Only use suitable cleaning agents to clean your appliance. Follow the tips on appliance care to make sure your appliance functions properly at all times. Regularly wipe the door seals, the front of the dishwasher and the control panel using a damp cloth and dishwashing liquid. If the appliance is not going to be used for a while, leave the door slightly ajar.
• Page 24: Cleaning and maintenance Pull the micro filter downward and off. Cleaning the spray arms Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove. Press the locking catches together and take the coarse filter upward and out. Pull up the lower spray arm to remove. Clean the filter elements under running water. Carefully remove the rim of debris between the coarse filter and the fine filter. Put the filter system back together. Ensure that the locking catches on the coarse filter click into position. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign objects. Insert the lower spray arm. Ensure that the arrow markings match up. Insert the upper spray arm and screw firmly in place.
• Page 25: Troubleshooting You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs. Four vertical LED's all light up at the same time. Not an appliance error. Garbage disposal is still plugged or the drain hose is kinked. Check that the garbage disposal plug is removed and that the drain hose is not kinked. Not an appliance error. The drain pump cover is loose or a foreign object is blocking the pump. Secure the cover of the drain pump so it clicks into place or clean the drain pump. Filters in the water connection of the supply or AquaStop hose are blocked. Switch off the appliance and pull out the power cord plug. Install the inlet hose without kinks. Turn on the faucet.
• Page 26: Troubleshooting Four vertical LEDs are all flashing. There is a technical issue. If the problem occurs again, contact customer service and give the error code. Dishware is not dry due to no rinse aid used or dosage set too low. Select a wash cycle with drying to improve drying performance. Position dishware at an angle where possible to avoid water collection. Use rinse aid to improve drying performance. Activate Extra Dry/intensive drying for better results. Wait until the program ends before removing dishware. Use a name-brand rinse aid for better drying performance. Condensation drying creates water droplets in the tub; this is normal.
• Page 27: Troubleshooting Food remnants on dishware may be caused by dishware being placed too close together or the rack being overfilled. Arrange dishware with sufficient space in between for proper spray jet reach. Avoid points of contact to ensure effective cleaning. The spray arm rotation may be blocked; arrange dishware to prevent obstruction. Blocked spray arm nozzles can be resolved by cleaning the spray arms. Dirty filters require cleaning to maintain performance. Filters must be inserted correctly and engaged properly. Selecting a more intensive wash program can help with stubborn remnants. Tall narrow containers should not be positioned at too great an angle or in corner areas. Detergent residue may occur if the dispenser lid is blocked by dishware.
• Page 28: Troubleshooting Issue Cause and troubleshooting Wipeable or water-soluble coatings may have detergent residue that cannot generally be removed with chemicals. Change your detergent and scrub the appliance by hand. Stubborn white coatings on dishware may also be due to detergent residue. Increase the amount of detergent used or select a more intensive wash program. Tea residue or lipstick marks on dishware may occur if the dishwashing temperature is too low. Use a suitable detergent and follow the manufacturer's instructions for the amount to be used. Colored coatings inside the appliance may be due to substances in vegetables or tap water. Clean the appliance, as coatings may be harmless to health. Plastic parts inside the appliance may become discolored over time but this will not impair functioning. Removable streaks on glasses and silverware may be due to the rinse aid setting being too high or no rinse aid being added.
• Page 29: Troubleshooting There are removable streaks on glasses, glassware with a metallic appearance and silverware. Items of dishware are blocking the dispenser lid. Dishware has been precleaned too intensively. Only remove large remnants of food and do not pre-rinse dishware. Irreversible clouding of glassware. Use dishwasher-proof glasses. Detergent residue is present in the detergent dispenser or the tab collecting tray. Check that the spray arms are not blocked and can rotate freely. Excessive formation of foam occurs. Hand soap got in the rinse aid dispenser. Connection to home network is not established. Check the wireless network connection of your router. Refill indicator for rinse aid lights up. Add rinse aid. Refill indicator for rinse aid does not light up. Rinse aid system is switched off.
• Page 30: Troubleshooting All LEDs light up or flash. Electronics have detected a fault. Water is left in the appliance at the end of the program. Filter system or area under the filters is blocked. Appliance cannot be switched on or operated. Software update is taking place. Appliance does not start. The breaker has tripped. Appliance door is not closed properly. Upper rack is pressing against inner door and preventing appliance door from being closed securely. Appliance door cannot be closed. Door lock has been activated.
• Page 31: Troubleshooting Appliance door cannot be closed due to installation method. Check whether the appliance has been installed properly. Lid on the detergent dispenser cannot be closed due to sticky detergent residue. Remove detergent residue. Filling valves making knocking noises are caused by domestic installation. Noise level can vary depending on the type of dishes loaded. Make sure the dishware is loaded securely. Spray arm may strike dishes if not arranged properly. Position light items of dishware securely to prevent movement during the wash cycle. Large food remnants or foreign objects can block the drain pump. Disconnect the appliance from the power supply before cleaning the drain pump.
• Page 32: Transportation, storage and disposal To avoid damage to the appliance, empty it before transporting. Always transport the dishwasher upright to prevent residual water getting into the machine's controls. Remove dishware from the appliance. Secure loose parts. Turn off the water faucet. Environmentally sound disposal allows valuable raw materials to be recycled. Disconnect the appliance from the power supply. Avoid a risk of entrapment upon disposal. Preparing your unit for vacation includes turning off the main valve and water supply. If your dishwasher will be unused for an extended period in freezing temperatures, have it winterized by an authorized service provider.
• Page 33: Customer service Model number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) You can find the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate. The rating plate is located inside the appliance door. Making a note of your appliance's details and the customer service telephone number will enable you to find them again quickly.
• Page 34: Statement of limited product warranty 5 year limited warranty on dish racks: BSH will replace the upper or lower dish rack if the rack proves defective in materials or workmanship. Lifetime warranty against stainless steel rust through: BSH will repair or replace your dishwasher if the inner liner should rust through. BSH will repair or replace the stainless steel door if the door should rust through. Bosch is under no obligation to provide concessions once this warranty has expired. During this warranty period, Bosch will repair your product without charge if it proves to have been manufactured with a defect in materials or workmanship. Bosch's sole liability is to repair manufacturer-defective product only, using a Bosch authorized service provider. Warranty exclusions include defects or damage not directly caused by Bosch. Use of the product in anything other than its normal manner may void the warranty. Ordinary wear and tear, spills, and environmental factors are excluded from warranty coverage. Bosch will not have any liability for damage to surrounding property or for products with altered serial numbers.
• Page 35: Register your appliance to enjoy customized benefits. Simply create a MyBosch account, then register your appliance. You'll find a variety of customized information in MyBosch such as discounts for filters, cleaners, accessories & parts. Easy access to manuals & appliance specifications. Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration). No matter what, no matter when: Bosch is here to support you. We’re here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs. Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch services. Please have your Model Number (E-Nr) ready when contacting us. Contact us for support.
