FISHER and PAYKEL DD60STI9 Tail Dishwasher

1

2

3

4

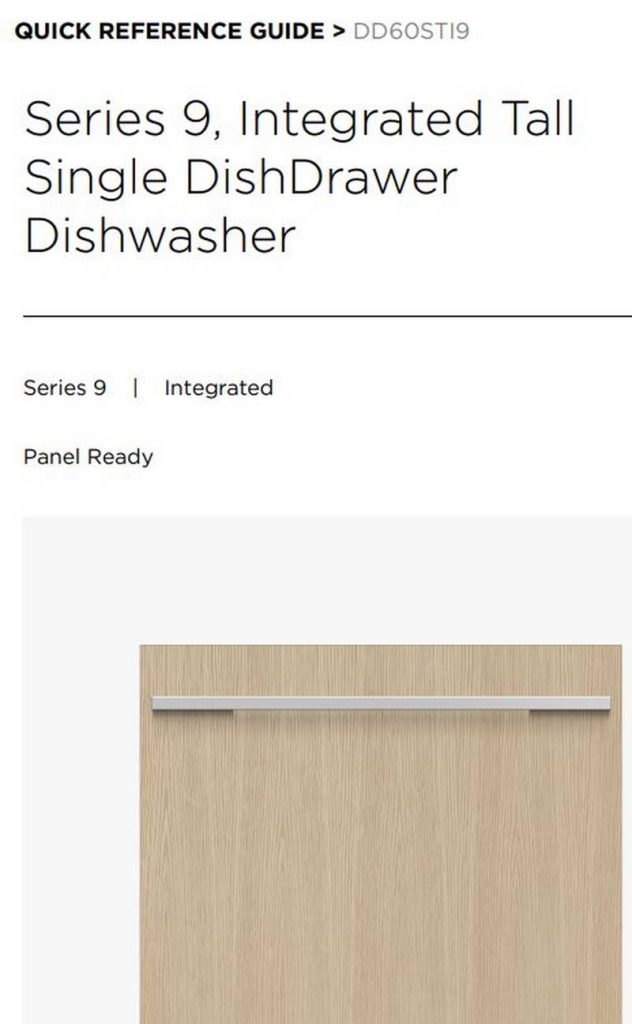

QUICK REFERENCE GUIDE > DD60STI9

Date: 17.03.2025 > 1

Customise with your own front panel and handle to match your

kitchen cabinetry

The Quick wash modifier delivers a faster wash while

Series 9, Integrated Tall

Single DishDrawer

Dishwasher

maintaining performance. The Sanitise option provides extra

protection, killing 99.9% of bacteria in the final rinse. The Extra

Dry setting is perfect for plastic dishes.

DIMENSIONS

Knock to pause

Instead of needing a remote control, these DishDrawer™

Dishwashers have a knock to pause function. A knock on the

front panel will pause the dishwasher which can be re-started

again by using the start/play button.

Height

Width

Depth

454 mm

599 mm

553 mm

Series 9

|

Integrated

Panel Ready

Quiet Performer

Running at a very low decibel rate, these DishDrawer™

Dishwashers do their job without making a fuss. The

combination of intelligent technology and simple mechanics

means greater reliability and excellent wash performance.

SPECIFICATIONS

Accessories (included)

Cutlery basket

•

•

Knife clip and multipurpose clip

Accessories (sold separately)

Door panel black stainless steel

ADDD60STPB

ADDD60STNB

Door panel recessed handle black stainless

steel

FEATURES & BENEFITS

Integrating into your kitchen design seamlessly, with extra height

for larger dishes in the tall top drawer.

Door panel recessed handle matte black

glass

ADDD60STZB

Knock to pause function is perfect if you miss a dish

Ease Of Use

Door panel recessed handle stainless steel

Door panel stainless steel

ADDD60STNX

ADDD60STPX

DishDrawer™ Dishwashers are as easy to open and close as

kitchen drawers and can be conveniently positioned at bench

height for ease of loading and minimal bending.

With extra height for taller dishes, and customisable internal

shelving

Handle kit Contemporary round, aluminium AHS-OBDD-60S

Six wash programs, as well as additional Quick wash, Sanitise

and Extra Dry options

Handle kit Contemporary square fine,

aluminium

AHD5-

OBDD-60SX

Quick, Sanitise and Extra Dry options

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	FISHER and PAYKEL DD60STI9 Tail Dishwasher
Make	FISHER and PAYKEL
Language	English
Filetype	PDF (Download)
File size	0.06 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• FISHER and PAYKEL

FISHER and PAYKEL DD60STI9 Tail Dishwasher Overview

Summary of Contents

• Page 1: Customise with your own front panel and handle to match your kitchen cabinetry. The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes. These DishDrawer™ Dishwashers have a knock to pause function. Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. Integrating into your kitchen design seamlessly, with extra height for larger dishes in the tall top drawer. DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers. With extra height for taller dishes, and customisable internal shelving. Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options.
• Page 2: Quick reference guide for DD60STI9. Noise emissions of 43 dBA. The product accommodates round plates up to 310mm. Water pressure ranges from 30kPa to 1000kPa. Product dimensions include a depth of 553mm, height of 454mm, and width of 599mm. The warranty covers parts and labor for 2 years. Energy saving delay start option of up to 12 hours. Features include fan-assisted drying and flood protection. Wash programs include delicate, eco, and quick options. Controls include an electronic fault/diagnostic indicator and internal wash selector.
• Page 3: Contemporary square handle
• Page 4: Sketchup Single DishDrawer™ Dishwasher User Guide DishDrawer™ Dishwasher All appliances use energy, and energy usage typically generates carbon emissions. Fisher & Paykel Appliances’ In-use Energy Carbon Emissions Estimate indicates carbon emissions from a product’s in-use energy. This is calculated either annually or per cycle, using the product’s market-specific energy label energy consumption data multiplied by the carbon emissions factor for energy in your country or region. Our In-use Energy Carbon Emissions Estimate is designed to assist customers in making informed purchasing decisions when comparing different Fisher & Paykel products. A heat pump dryer typically has a lower In-use Energy Carbon Emissions Estimate than a vented dryer. 24 Hours 7 Days a Week Customer Support.
