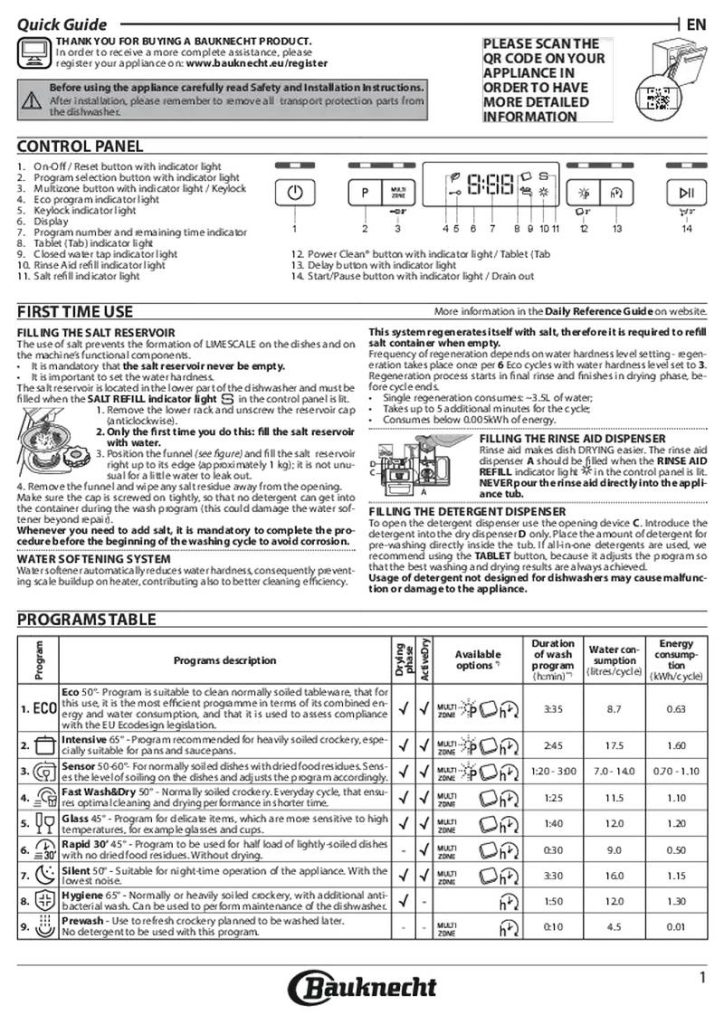

Quick Guide

EN

THANK YOU FOR BUYING A BAUKNECHT PRODUCT.

PLEASE SCAN THE

QR CODE ON YOUR

APPLIANCE IN

ORDER TO HAVE

MORE DETAILED

INFORMATION

In order to receive a more complete assistance, please

register your appliance on: www.bauknecht.eu/register

Before using the appliance carefully read Safety and Installation Instructions.

After installation, please remember to remove all transport protection parts from

the dishwasher.

CONTROL PANEL

1. On-Off / Reset button with indicator light

2. Program selection button with indicator light

3. Multizone button with indicator light / Keylock

4. Eco program indicator light

5. Keylock indicator light

6. Display

1

2

3

4 5

6

7

8

9

10 11

12

13

14

7. Program number and remaining time indicator

8. Tablet (Tab) indicator light

9. Closed water tap indicator light

10. Rinse Aid refill indicator light

11. Salt refill indicator light

12. Power Clean® button with indicator light / Tablet (Tab

13. Delay button with indicator light

14. Start/Pause button with indicator light / Drain out

More information in the Daily Reference Guide on website.

FIRST TIME USE

This system regenerates itself with salt, therefore it is required to refill

salt container when empty.

Frequency of regeneration depends on water hardness level setting - regen-

eration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, be-

fore cycle ends.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

•

•

It is mandatory that the salt reservoir never be empty.

It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher and must be

filled when the SALT REFILL indicator light in the control panel is lit.

•

•

•

Single regeneration consumes: ~3.5L of water;

Takes up to 5 additional minutes for the cycle;

Consumes below 0.005kWh of energy.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Only the first time you do this: fill the salt reservoir

with water.

3. Position the funnel (see figure) and fill the salt reservoir

right up to its edge (approximately 1 kg); it is not unu-

sual for a little water to leak out.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid

dispenser A should be filled when the RINSE AID

REFILL indicator light in the control panel is lit.

NEVER pour the rinse aid directly into the appli-

ance tub.

D

C

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into

the container during the wash program (this could damage the water sof-

tener beyond repair).

Whenever you need to add salt, it is mandatory to complete the pro-

cedure before the beginning of the washing cycle to avoid corrosion.

A

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the

detergent into the dry dispenser D only. Place the amount of detergent for

pre-washing directly inside the tub. If all-in-one detergents are used, we

recommend using the TABLET button, because it adjusts the program so

that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunc-

tion or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently prevent-

ing scale buildup on heater, contributing also to better cleaning efficiency.

PROGRAMS TABLE

Duration

of wash

program

(h:min)^**)

Energy

consump-

tion

Water con-

sumption

(litres/cycle)

Available

options ^*)

Programs description

(kWh/cycle)

Eco 50°- Program is suitable to clean normally soiled tableware, that for

this use, it is the most efficient programme in terms of its combined en-

ergy and water consumption, and that it is used to assess compliance

1.

3:35

8.7

0.63

with the EU Ecodesign legislation.

Intensive 65° - Program recommended for heavily soiled crockery, espe-

2.

2:45

1:20 - 3:00

1:25

17.5

7.0 - 14.0

11.5

1.60

0.70 - 1.10

1.10

cially suitable for pans and saucepans.

Sensor 50-60°- For normally soiled dishes with dried food residues. Sens-

es the level of soiling on the dishes and adjusts the program accordingly.

3.

Fast Wash&Dry 50° - Normally soiled crockery. Everyday cycle, that ensu-

res optimal cleaning and drying performance in shorter time.

4.

Glass 45° - Program for delicate items, which are more sensitive to high

temperatures, for example glasses and cups.

5.

1:40

12.0

1.20

Rapid 30’ 45° - Program to be used for half load of lightly-soiled dishes

6.

0:30

9.0

0.50

-

-

with no dried food residues. Without drying.

Silent 50° - Suitable for night-time operation of the appliance. With the

lowest noise.

7.

3:30

16.0

1.15

Hygiene 65° - Normally or heavily soiled crockery, with additional anti-

bacterial wash. Can be used to perform maintenance of the dishwasher.

8.

1:50

12.0

1.30

-

-

Prewash - Use to refresh crockery planned to be washed later.

No detergent to be used with this program.

9.

0:10

4.5

0.01

1
