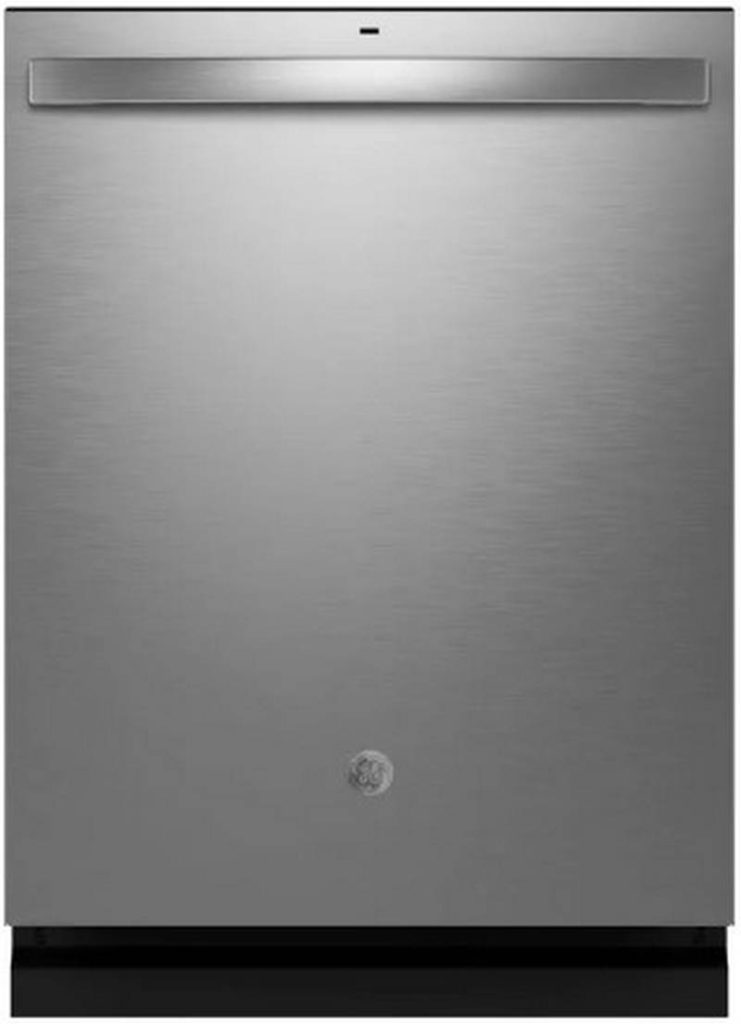

GE APPLIANCES GDT670SGV Interior Dishwasher with Hidden Controls

1

2

GDT670SGV/SMV/SYV/SFV

GE^® Stainless Steel Interior Dishwasher with Hidden Controls

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

ELECTRICAL RATING

24"

Typical

23-3/4"

Voltage AC..........................................................120

Hertz.......................................................................60

Total connected load amperage .............7.8

Calrod^® heater watts max............................800/500

For use on adequately wired 120-volt, 7.8-amp

circuit having 2-wire service with a separate

ground wire. This appliance must be grounded

for safe operation.

29-7/8"

INSTALLATION INFORMATION: Before installing,

consult installation instructions packed with

product for current dimensional data.

33-3/8" MIN.

adj to

27-1/2"

34-5/8" MAX.

4" (toekick)

This Wall Area

must be Free

of Pipes or

wires

24"

Min.

33-1/2" to 34-3/4"

Underside of

Countertop

to Floor

4"

Plumbing and Electric Service

Must Enter Inside This Area

Cabinets

Square

and

6"

Plumb

Figure A

24"

Min.

Listed by

Underwriters

Laboratories

For answers to your Monogram, Café^™, GE Profile^™ or GE Appliances

product questions, visit our website at geappliances.com or call

GE Answer Center^® Service, 800.626.2000.

Specification Revised 4/23

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	GE APPLIANCES GDT670SGV Interior Dishwasher with Hidden Controls
Make	GE Appliances
Language	English
Filetype	PDF (Download)
File size	0.19 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• GE Appliances

GE APPLIANCES GDT670SGV Interior Dishwasher with Hidden Controls Overview

Summary of Contents

• Page 1: GE stainless steel interior dishwasher with hidden controls. Dimensions and installation information provided in inches. Electrical rating includes a voltage of 120 AC and a frequency of 60 Hertz. Total connected load amperage is 7.8. Calrod heater wattage is a maximum of 800/500. Appliance must be grounded for safe operation. Consult installation instructions for current dimensional data before installing. Plumbing and electric service must enter inside the designated area. Cabinets must be square and plumb. Listed by Underwriters Laboratories.
• Page 2: GE stainless steel interior dishwasher with hidden controls features and benefits include: Dry Boost™ technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier. The third rack with removable silverware caddy is designed to load more than just silverware, providing additional space for unique items. Deep clean silverware jets blast the silverware basket from the bottom up, removing all stuck-on food for sparkling results. 4 bottle wash jets ensure a deep clean for tall items, narrow glasses, jars, and more by directing water and detergent inside to wash hard-to-reach areas. The smooth-glide upper rack makes loading and unloading easy, extending on stainless steel ball bearings. Steam + Sani cycle saves time by steaming and sanitizing, reducing 99.999% of bacteria without pre-rinsing or soaking. Active Flood Protect prevents potential overflows using a water leak detector to maintain safe water levels. The Piranha™ hard food disposer allows use without pre-rinsing, pulverizing food particles with stainless steel impellers. This dishwasher operates at a super-silent 45 dBA, providing a peaceful kitchen environment. The extra-large capacity accommodates 16 place settings, making cleanup easy after large gatherings.
