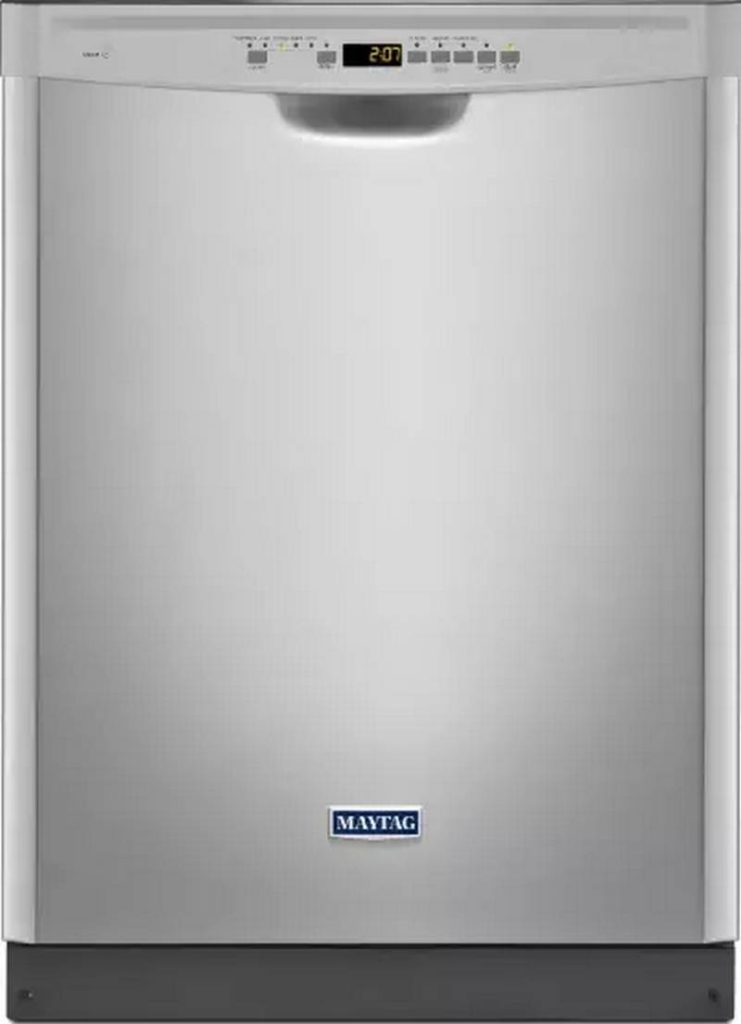

MAYTAG MDB4949SD Series Undercounter Dishwasher

1

2

Undercounter Dishwasher

PRODUCT MODEL NUMBERS

PRODUCT DIMENSIONS

MDB8969SD฀฀฀฀MDB8959SF

MDB8979SE฀฀฀฀MDB8979SF

MDB4949SD฀฀฀฀MDB6949SD

MDB5969SD฀฀฀฀MDB7949SD

23

(60.6 cm)

"

"

Electrical Requirements:120-volt, 60 Hz, AC-only,

15- or฀20-amp. fused electrical supply. Copper wire only.

A฀time฀delay fuse or circuit breaker and separate circuit

is฀recommended.

24

(62.2 cm)

B

If direct wiring dishwasher: Use flexible, armored

or฀nonmetallic, sheathed copper

wire with grounding wire that

C

meets the wiring requirements for

your home and local codes and ordinances.

Use a UL Listed or CSA Approved conduit connector.

If connecting dishwasher with a power supply cord:

Use power supply cord kit (Part

Number 4317824) marked for use

with dishwashers. Follow the kit

instructions for installing the power supply cord.

"

(1.9 cm)

A

30"

(76.2 cm)

Power supply cord must plug into a grounded฀

3฀prong outlet located in the cabinet next to฀the

dishwasher opening. Outlet must meet all local฀

codes and ordinances.

"

33

Water Supply Requirements:฀A hot water line with 20 to฀

120 psi (138 to 862 kPa) water pressure. Water฀temperature

must be 120°F (49°C) water at dishwasher.฀Use฀³/₈" O.D.

copper tubing with compression fitting or฀flexible braided

water supply line.

(85,1wcimth)

min.

wheels

ed

v

remo

Note:฀ " minimum plastic tubing is not recommended.

Use a 90°฀elbow with " hose connection with rubber฀

washer (Part Number W10273460). Do not solder

within 6"฀(15.2 cm) from water inlet valve.

"

21

(53.3 cm)

Drain Requirements:A new drain hose is supplied with

your dishwasher. If this is not long enough, use a new

drain฀hose with a maximum length of 12' (3.7 m) (Part

Number฀3385556) that meets all current AHAM/IAPMO

test฀standards, is resistant to heat and detergent, and

fits the 1"฀(2.5 cm) drain connector of the dishwasher.

3

" - 4 "

"

(8.8 cm - 10.6 cm)

For 4" (10 cm)

toekick, height of

cabinet฀opening is

34¹/₂" (86.3 cm).

(9.4 cm)

Make sure to connect the drain hose to waste tee or฀disposer

inlet above drain trap in house plumbing and 20"฀(50.8 cm)

minimum above the floor. It is recommended฀that฀the฀฀

drain hose either be฀looped

air gap

A. Insulation may be compressed

(not used on all models).

up and securely฀fastened to

the underside of฀the counter

or be connected฀to an air gap.

B. For panel-ready models, dishwasher

depth is 24" (60 cm) not including the

" (1.9 cm) custom door panel.

Make sure to use an air

gap฀if the drain hose is฀

connected to house฀

plumbing lower than

20"฀(50.8 cm) above

C. Door handles may protrude forward

of the face of the dishwasher; varies

by model.

floor.

subfloor or฀

Use฀¹/₂" (1.3 cm) minimum I.D. drain line fittings.

If required, the air gap should be installed in accordance฀

with the air gap installation instructions. When connecting

the air gap, a rubber hose (not provided) will be needed

toconnect to the waste tee or disposer inlet.

Page 1 of 2

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

W10741197A-D-MT

12/2016

https://manual-hub.com/

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	MAYTAG MDB4949SD Series Undercounter Dishwasher
Make	Maytag
Language	English
Filetype	PDF (Download)
File size	0.29 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• Maytag

MAYTAG MDB4949SD Series Undercounter Dishwasher Overview

Summary of Contents

• Page 1: Undercounter dishwasher Product model numbers Product dimensions Electrical requirements: 120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical supply. Water supply requirements: A hot water line with 20 to 120 psi water pressure. Water temperature must be 120°F. Drain requirements: A new drain hose is supplied with your dishwasher. Make sure to connect the drain hose to waste tee or disposer inlet above drain trap in house plumbing. Use an air gap if the drain hose is connected to house plumbing lower than 20 inches above the floor. Dimensions are for planning purposes only. For complete details, see installation instructions packed with the product.
• Page 2: Cabinet cutout dimensions are provided for installation. Shaded areas indicate where utility connections may be installed. Measure from the lowest point on the underside of the countertop. The height may be reduced by removing the rear leveling legs from the dishwasher. Minimum dimensions are measured from the narrowest point of the opening. Check that all surfaces have no protrusions that would prohibit dishwasher installation. Dimensions are for planning purposes only. Specifications are subject to change without notice. Refer to installation instructions packed with the product for complete details. Whirlpool Corporation reserves the right to change materials and specifications without notice.
