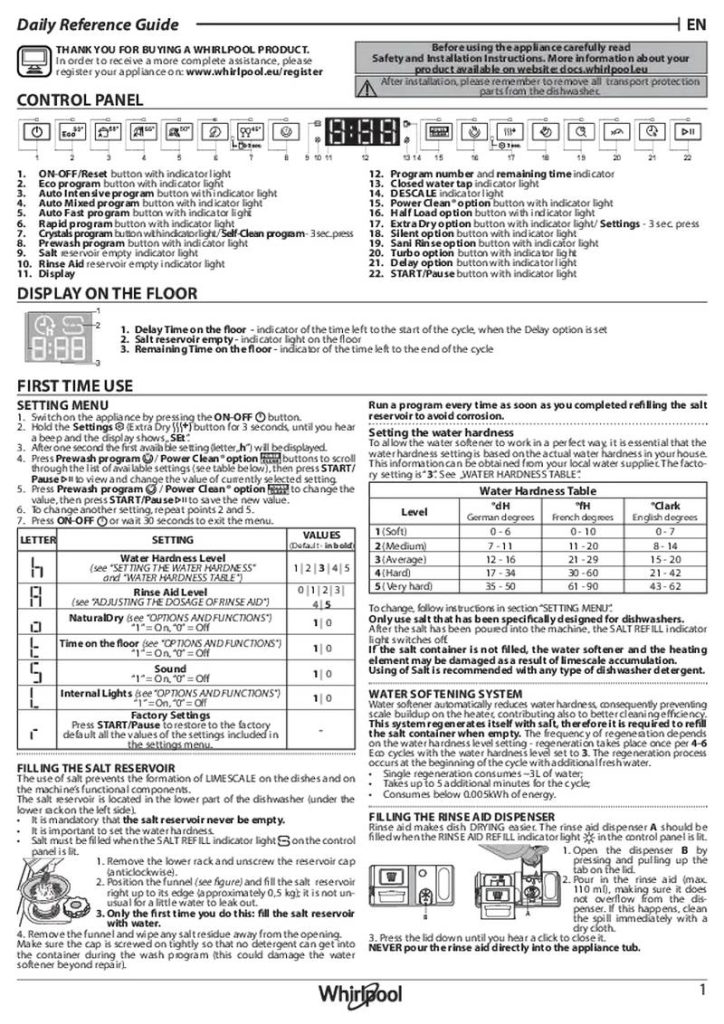

Daily Reference Guide

EN

Before using the appliance carefully read

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please

register your appliance on: www.whirlpool.eu/register

Safety and Installation Instructions. More information about your

product available on website: docs.whirlpool.eu

After installation, please remember to remove all transport protection

parts from the dishwasher.

CONTROL PANEL

1

2

3

4

5

6

7

8

9

10 11

12

13 14

15

16

17

18

19

20

21

22

1. ON-OFF/Reset button with indicator light

2. Eco program button with indicator light

3. Auto Intensive program button with indicator light

4. Auto Mixed program button with indicator light

5. Auto Fast program button with indicator light

6. Rapid program button with indicator light

12. Program number and remaining time indicator

13. Closed water tap indicator light

14. DESCALE indicator light

15. Power Clean® option button with indicator light

16. Half Load option button with indicator light

17. Extra Dry option button with indicator light/ Settings - 3 sec. press

7. Crystals program button with indicator light/ Self-Clean program - 3 sec. press 18. Silent option button with indicator light

8. Prewash program button with indicator light

9. Salt reservoir empty indicator light

10. Rinse Aid reservoir empty indicator light

11. Display

19. Sani Rinse option button with indicator light

20. Turbo option button with indicator light

21. Delay option button with indicator light

22. START/Pause button with indicator light

DISPLAY ON THE FLOOR

1

2

1. Delay Time on the floor - indicator of the time left to the start of the cycle, when the Delay option is set

2. Salt reservoir empty - indicator light on the floor

3. Remaining Time on the floor - indicator of the time left to the end of the cycle

3

FIRST TIME USE

SETTING MENU

Run a program every time as soon as you completed refilling the salt

reservoir to avoid corrosion.

1. Switch on the appliance by pressing the ON-OFF button.

2. Hold the Settings (Extra Dry

a beep and the display shows„SEt”.

3. After one second the first available setting (letter„h”) will be displayed.

4. Press Prewash program / Power Clean® option

through the list of available settings (see table below), then press START/

Pause to view and change the value of currently selected setting.

5. Press Prewash program / Power Clean® option

value, then press START/Pause to save the new value.

6. To change another setting, repeat points 2 and 5.

7. Press ON-OFF or wait 30 seconds to exit the menu.

) button for 3 seconds, until you hear

Setting the water hardness

To allow the water softener to work in a perfect way, it is essential that the

water hardness setting is based on the actual water hardness in your house.

This information can be obtained from your local water supplier. The facto-

ry setting is “3”. See „WATER HARDNESS TABLE”.

buttons to scroll

to change the

Water Hardness Table

°dH

German degrees

°fH

French degrees

°Clark

English degrees

Level

1 (Soft)

0 - 6

7 - 11

0 - 10

11 - 20

21 - 29

30 - 60

61 - 90

0 - 7

8 - 14

VALUES

(Default - in bold)

LETTER

SETTING

2 (Medium)

3 (Average)

4 (Hard)

Water Hardness Level

(see “SETTING THE WATER HARDNESS”

and “WATER HARDNESS TABLE”)

12 - 16

17 - 34

35 - 50

15 - 20

21 - 42

43 - 62

1 | 2 | 3 | 4 | 5

5 (Very hard)

0 | 1 | 2 | 3 |

Rinse Aid Level

(see “ADJUSTING THE DOSAGE OF RINSE AID”)

4 | 5

To change, follow instructions in section“SETTING MENU”.

NaturalDry (see “OPTIONS AND FUNCTIONS”)

“1”= On, “0”= Off

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator

light switches off.

1 | 0

1 | 0

1 | 0

1 | 0

Time on the floor (see “OPTIONS AND FUNCTIONS”)

“1”= On, “0”= Off

If the salt container is not filled, the water softener and the heating

element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

Sound

“1”= On, “0”= Off

Internal Lights (see “OPTIONS AND FUNCTIONS”)

“1”= On, “0”= Off

Factory Settings

Press START/Pause to restore to the factory

default all the values of the settings included in

the settings menu.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing

scale buildup on the heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill

the salt container when empty. The frequency of regeneration depends

on the water hardness level setting - regeneration takes place once per 4-6

Eco cycles with the water hardness level set to 3. The regeneration process

occurs at the beginning of the cycle with additional fresh water.

-

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

The salt reservoir is located in the lower part of the dishwasher (under the

lower rack on the left side).

•

•

•

Single regeneration consumes ~3L of water;

Takes up to 5 additional minutes for the cycle;

Consumes below 0.005kWh of energy.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be

filled when the RINSE AID REFILL indicator light in the control panel is lit.

•

•

•

It is mandatory that the salt reservoir never be empty.

It is important to set the water hardness.

Salt must be filled when the SALT REFILL indicator light on the control

panel is lit.

1. Open the dispenser

B

by

pressing and pulling up the

tab on the lid.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Position the funnel (see figure) and fill the salt reservoir

right up to its edge (approximately 0,5 kg); it is not un-

usual for a little water to leak out.

2. Pour in the rinse aid (max.

110 ml), making sure it does

not overflow from the dis-

penser. If this happens, clean

the spill immediately with a

dry cloth.

A

3. Only the first time you do this: fill the salt reservoir

with water.

B

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly so that no detergent can get into

the container during the wash program (this could damage the water

softener beyond repair).

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

1
