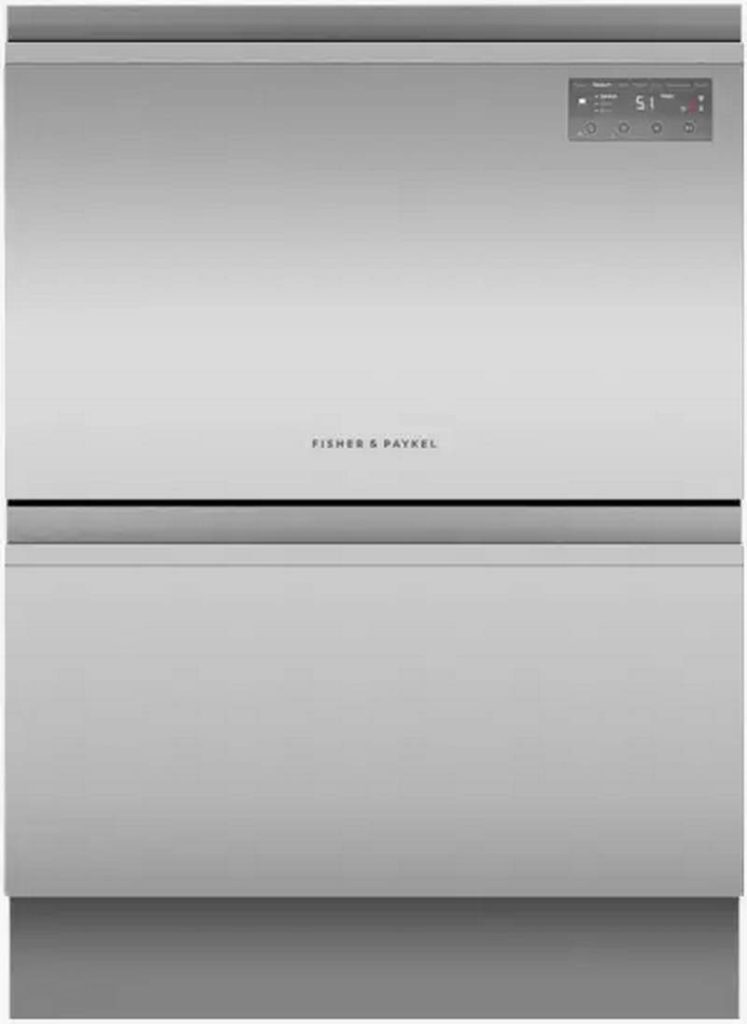

FISHER PAYKEL DD60D2NX9 Dishwasher

1

2

3

QUICK REFERENCE GUIDE > DD60D2NX9

Date: 19.10.2023 > 1

Wi-Fi enabled and works with the SmartHQ™ app for remote

control and notifications

EASE OF USE

Built-under Double

DishDrawer™ Dishwasher,

Sanitise

DishDrawer™ Dishwashers are as easy to open and close as

kitchen drawers and can be conveniently positioned at bench

height for ease of loading and minimal bending. Flexible racking

allows you to make adjustments to fit in a variety of dishes.

DIMENSIONS

QUICK, SANITISE AND DRY+ OPTIONS

820 - 880mm

599mm

Height

Width

Depth

The Quick wash modifier delivers a faster wash while maintaining

performance. The Sanitise option provides extra protection,

killing 99.9% of bacteria* in the final rinse. The Dry+ setting is

perfect for plastic dishes. *Certified to NSF/ANSI Standard 184

Series 7

|

Contemporary

573mm

Stainless Steel

TRUE HALF LOAD

Each drawer holds a true half load for small, fast washing that

won't waste water. Both drawers operate independently so two

wash cycles can operate simultaneously to allow for varying

loads.

INDEPENDENT WASH

With the ability to use both drawers independently and select

different wash programs, the DishDrawer™ Dishwasher can wash

everything from fine glass and crystal to heavily soiled pots and

pans.

QUIET PERFORMER

Running at a very low decibel rating, these DishDrawer™

Dishwashers do their job without making a fuss. The combination

of intelligent technology and simple mechanics means greater

reliability and excellent wash performance.

EFFICIENT PERFORMANCE

Wash one drawer while you load the other, with room in each

drawer for full-size dinner plates.

Our DishDrawer™ Dishwashers use the energy they need without

compromising on wash performance.

FEATURES & BENEFITS

Designed to be installed under your benchtop, with recessed

handles for a seamless look

SPECIFICATIONS

SEAMLESS FIT

Six wash programs, as well as additional Quick wash, Sanitise

and Dry+ modifiers

Our built-under DishDrawer™ Dishwashers are installed flush

under your benchtop with the option of a custom kickstrip,

ensuring minimal gaps. Designed to match the Fisher & Paykel

family of kitchen appliances with recessed handles for a

streamlined look.

Accessories

Flexible racking allows you to customise internal shelves to suit

your needs

Cutlery basket

Kickstrip

•

•

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	FISHER PAYKEL DD60D2NX9 Dishwasher
Make	Fisher & Paykel
Language	English
Filetype	PDF (Download)
File size	0.06 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• Fisher & Paykel

FISHER PAYKEL DD60D2NX9 Dishwasher Overview

Summary of Contents

• Page 1: Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications. DishDrawer™ dishwashers are easy to open and close, positioned at bench height for ease of loading. The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. Each drawer holds a true half load for small, fast washing that won't waste water. Both drawers operate independently, allowing for two wash cycles to run simultaneously. The DishDrawer™ dishwasher can wash everything from fine glass to heavily soiled pots. Running at a very low decibel rating, these dishwashers operate quietly. Our DishDrawer™ dishwashers use energy efficiently without compromising wash performance. Designed to be installed under your benchtop with recessed handles for a seamless look.
• Page 2: Quick reference guide for DD60D2NX9. Noise on standard cycle is 42dBA. It accommodates round plates with adjustable height and foldable tines. Water connection requires a pressure of 30kPa - 1000kPa. Power requirements include 10A at 50Hz and a supply voltage of 220 - 240V. The product dimensions are 573mm in depth, 820 - 880mm in height, and 599mm in width. Energy rating is 3.5 stars with an energy usage of 136 kWh/year. Water consumption per wash is 6.9L with a water efficiency rating of 4.5 stars (WELS). Warranty includes parts and labor for 2 years. Features include Wi-Fi connectivity, fan-assisted drying, and flood protection.
• Page 3: Quick reference guide for DD60D2NX9. Service and warranty information available. Energy label for DishDrawer™ dishwasher included. User guide for DishDrawer™ dishwasher provided. Installation guide for double DishDrawer™ dishwasher available. Preliminary specification guide for double DishDrawer™ dishwasher included. Customer support available 24 hours, 7 days a week.
