Omega ODW702X DishWasher

1

2

3

4

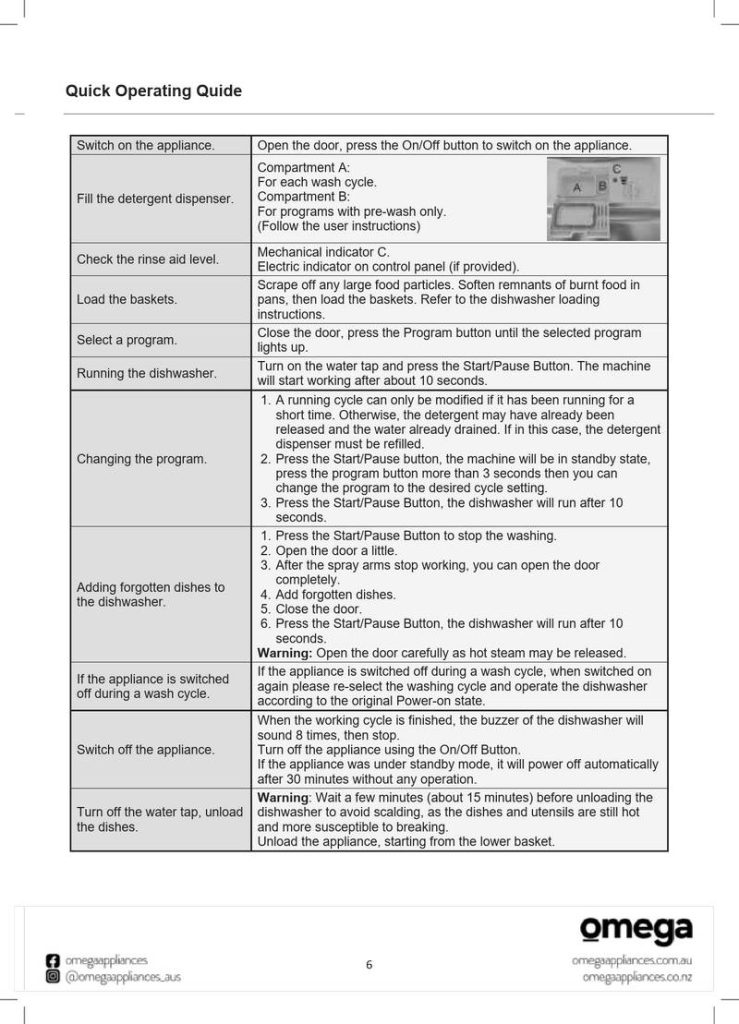

Quick Operating Quide

Switch on the appliance.

Open the door, press the On/Off button to switch on the appliance.

Compartment A:

For each wash cycle.

Compartment B:

Fill the detergent dispenser.

For programs with pre-wash only.

(Follow the user instructions)

Mechanical indicator C.

Electric indicator on control panel (if provided).

Check the rinse aid level.

Load the baskets.

Scrape off any large food particles. Soften remnants of burnt food in

pans, then load the baskets. Refer to the dishwasher loading

instructions.

Close the door, press the Program button until the selected program

lights up.

Select a program.

Turn on the water tap and press the Start/Pause Button. The machine

will start working after about 10 seconds.

Running the dishwasher.

1. A running cycle can only be modified if it has been running for a

short time. Otherwise, the detergent may have already been

released and the water already drained. If in this case, the detergent

dispenser must be refilled.

Changing the program.

2. Press the Start/Pause button, the machine will be in standby state,

press the program button more than 3 seconds then you can

change the program to the desired cycle setting.

3. Press the Start/Pause Button, the dishwasher will run after 10

seconds.

1. Press the Start/Pause Button to stop the washing.

2. Open the door a little.

3. After the spray arms stop working, you can open the door

completely.

4. Add forgotten dishes.

Adding forgotten dishes to

the dishwasher.

5. Close the door.

6. Press the Start/Pause Button, the dishwasher will run after 10

seconds.

Warning: Open the door carefully as hot steam may be released.

If the appliance is switched off during a wash cycle, when switched on

again please re-select the washing cycle and operate the dishwasher

according to the original Power-on state.

If the appliance is switched

off during a wash cycle.

When the working cycle is finished, the buzzer of the dishwasher will

sound 8 times, then stop.

Switch off the appliance.

Turn off the appliance using the On/Off Button.

If the appliance was under standby mode, it will power off automatically

after 30 minutes without any operation.

Warning: Wait a few minutes (about 15 minutes) before unloading the

Turn off the water tap, unload dishwasher to avoid scalding, as the dishes and utensils are still hot

the dishes.

and more susceptible to breaking.

Unload the appliance, starting from the lower basket.

6

VIEW FULL SCREEN PDF MANUAL

General	Details
Name	Omega ODW702X DishWasher
Make	Omega
Language	English
Filetype	PDF (Download)
File size	0.3 MB

Download PDF

(1 votes, average: 5.00 out of 5)

Loading...

• ALL DISHWASHER INSTRUCTIONS & USER MANUALS
• Omega

Omega ODW702X DishWasher Overview

Summary of Contents

• Page 1: Quick operating guide Switch on the appliance. Open the door, press the On/Off button to switch on the appliance. Fill the detergent dispenser for programs with pre-wash only. Check the rinse aid level. Load the baskets and scrape off any large food particles. Close the door, press the Program button until the selected program lights up. Turn on the water tap and press the Start/Pause button. A running cycle can only be modified if it has been running for a short time. Open the door carefully as hot steam may be released. When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.
• Page 2: Operating instructions Control panel Program indicators show which program you have chosen. Power button turns on/off the power supply. Display screen shows the remaining time and the state (running state, delay time, etc.). Program button is used to select the appropriate program. Start/pause button starts or pauses the selected washing program. Extra dry button selects the extra dry function. Delay button is used to set a delay. Child lock button locks the program when pressed simultaneously with two buttons. Dishwasher features include upper basket, inner pipe, lower basket, dispenser, cup shelf, spray arms, and filter assembly. Aqua stop and drain pipe are also part of the features.
• Page 3: Operating instructions Adjusting rinse aid dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on 4. If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to 5. Detergent Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. There are 3 types of detergents: with phosphate and with chlorine, with phosphate and without chlorine, without phosphate and without chlorine. Concentrated detergent Detergents can be split into two basic types: conventional, alkaline detergents with caustic components and low alkaline concentrated detergents with natural enzymes. Detergent tablets Detergent tablets of different brands dissolve at different speeds. Some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Detergent dispenser The dispenser must be refilled before the start of each wash cycle. Generally, only one tablespoon of detergent is needed for a normal wash load.
• Page 4: Operating instructions Proper use of detergent Use only detergent specifically made for dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Adding detergent to dispenser Push latch to open. Fill the detergent dispenser with detergent. Observe the manufacturer's dosing and storage recommendations. Close the lid and press until it locks in place. Dishwasher detergent is corrosive; keep it out of reach of children.
