KitchenAid KDFE204KPS Dishwasher
To remove the terminal box, depress the plastic latch, slide the
box toward the left of the unit along the metal tube and rotate the
left side of the box forward. Make sure that the product wiring is
still attached within the terminal box
DISCONNECT AND REMOVE DRIP TRAY
ASSEMBLY
4. Remove drip tray assembly
2. Remove terminal box cover
Terminal
Box cover
Using 1/4" (6.4 mm) nut driver remove the screw holding the
terminal box cover. Remove the cover by lifting it out of the box.
Keep the cover for later use.
Drip tray assembly
3. Install strain relief
To remove the drip tray assembly, press the snap at each side
of the plastic tray in toward the center of the product and pull
toward yourself. Be sure not to pull too far or too hard as the
float switch wire is still connected at this time.
5. Remove float switch wire
1
2
Install a UL Listed/CSA Approved metallic strain relief. Make sure
screw heads are facing up when tightening conduit nut. Strain
relief is provided with the power cord kit.
Suggested wire length relative to strain relief
41/2
(114.3 mm)
"
0.75" - 1"
(19 mm - 25 mm)
To remove the float switch wire, gently push the connector latch
tab (1) and then pull the connector (2) out of the housing. The
float itself should not be removed from the tray.
NOTE: Do not reinstall drip tray until instructed.
POWER CORD CONNECTION
Select UL Listed/CSA Approved power cord for the Dishwasher.
WARNING
Power Cord Ki
t
Kit typically includes power cord, metallic strain relief, grommet,
and twist-on wire connectors (Straight: Whirlpool Part
Number 4317824, 90°: Whirlpool Part Number W10278923RP).
For proper installation, refer to the installation instructions
provided with the kit.
Electrical Shock Hazard
1. Remove terminal box
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Terminal
Box
5
| General | Details |
|---|---|
| Name | KitchenAid KDFE204KPS Dishwasher |
| Make | KitchenAid |
| Language | English |
| Filetype | PDF (Download) |
| File size | 1.9 MB |
(1 votes, average: 5.00 out of 5)
Loading...
KitchenAid KDTE304RBS Third Level Jet Rack Dishwasher
KitchenAid KDTF324PPA Dishwasher
Kitchenaid MVWC565FW1 Dishwasher
KitchenAid w11323304 Dishwasher
KitchenAid KDFE104KWH Two Rack Dishwasher
KitchenAid KDTE104KPS Dishwasher
KitchenAid KDFE104KBL Front Dishwasher
KitchenAid KDTF924PPS Flush Cabinet Dishwasher
KitchenAid KDTE304RBS Level Jet Rack Dishwasher
KitchenAid KDF Series Dishwasher
CMA DISHMACHINES EST-66 Conveyor Dishwasher
INDESIT W11667630 B Dishwasher
BOSCH SMH4EVX00E Dishwasher
FISHER AND PAYKEL DD24STX6I1 Dish Drawer Dishwasher
BOSCH SPV2HKX39E Dishwasher
FISHER PAYKEL DD60ST4HZB9 Dishwasher
BOSH SBH4HVX00E Fully Integrated Dishwasher

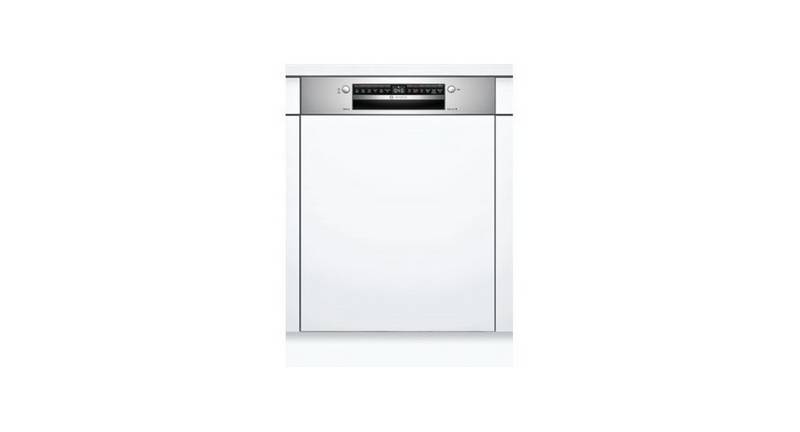

BOSCH SPI4ELS01D Dishwasher
